Applicable to M520 M50 system special LCD display MDT962B to replace the old CRT display with free shipping SF Express
New features:
1. All-black aluminum shell appearance
2. Plug and play, original interface original line original screw hole position
3. Seven font colors can be adjusted arbitrarily
4, long-term quality assurance 15 months

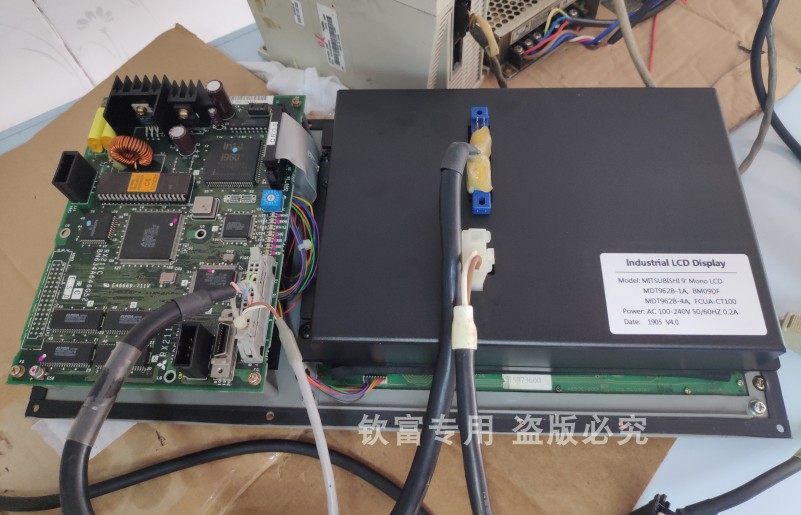

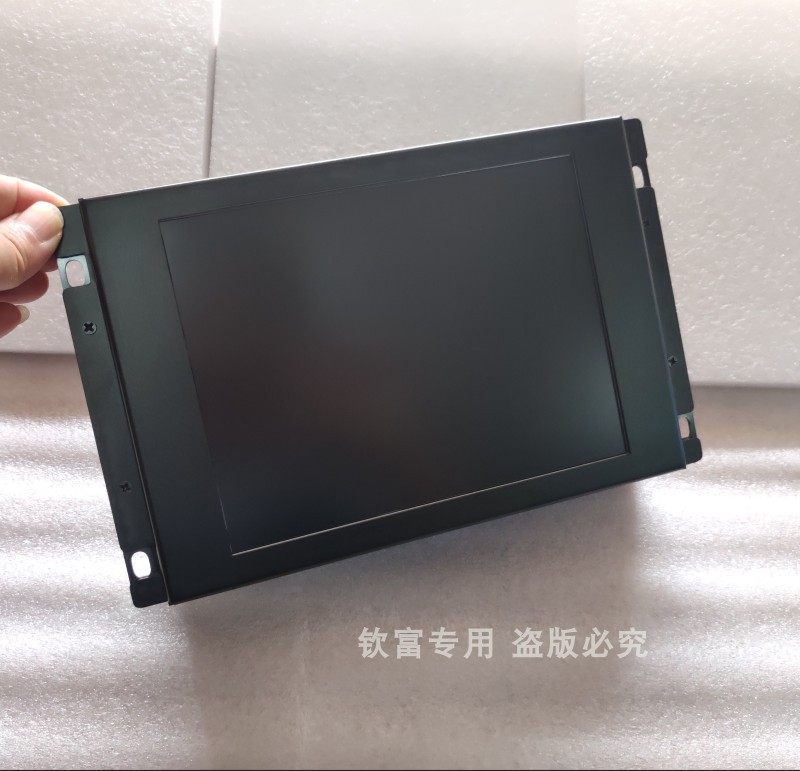

Physical picture:
This product is an industrial LCD display, used to update and replace the 9-inch (MDT962B-1A, BM09DF, MDT962B-4A, MDT947, MDT947B-1A, MDT947B-2) BM09DF single amber CRT-type picture tube display used in the Mitsubishi numerical control system M520 M500 M50 system (part of the corresponding Mitsubishi manufacturer model is FCUA-CT100)
The display parameters are:
1. CRT (picture tube) size 9 inches, viewing angle 90 degrees Neck Diameter 20mm
Color:AmberExplosion-proof standard: T-Band standard
2. Signal input, video, analog signal (positive) 0 - 2.3V
Step mode, horizontal synchronization, TTL digital signal (positive polarity)
Field step mode, vertical synchronization, TTL digital signal (positive polarity)
3. Scanning frequency, line frequency H = 24Khz field frequency V == 50.5Hz
4. Video display size, horizontal 160mm +/- 3mm vertical 110mm +/- 3mm
5. Power supply AC100-230V (50/60Hz)
6. Signal input VIA standard 10 PIN EDGE connector
Because the M520 and M500 systems are relatively rare, they are normally in stock. Due to the simultaneous sales with the entity, if they are out of stock, we will notify you as soon as possible! Thank you for your support!
