FCUA-CT100 Industrial Monitor MDT962B-1A is suitable for the old CRT

FCUA-CT100 Industrial Monitor MDT962B-1A is suitable for the old CRT upgraded LCD with free shipping nationwide

$149.23

~~$221.44~~

New features: 1. All-black aluminum shell appearance 2. Plug and play, original interface original line original screw hole position 3. Seven font colors can be adjusted arbitrarily 4, long-term quality assurance 15 months Invoices can be provided, plus 5% tax. This product is an industrial LCD display,...

Quantity :

Subtotal : $149.23

Brand : NewTouchBuff Official Store

Product Type :

Availability : 50 In Stock

SKU: FCUA-CT100

New features:

1. All-black aluminum shell appearance

2. Plug and play, original interface original line original screw hole position

3. Seven font colors can be adjusted arbitrarily

4, long-term quality assurance 15 months

Invoices can be provided, plus 5% tax.

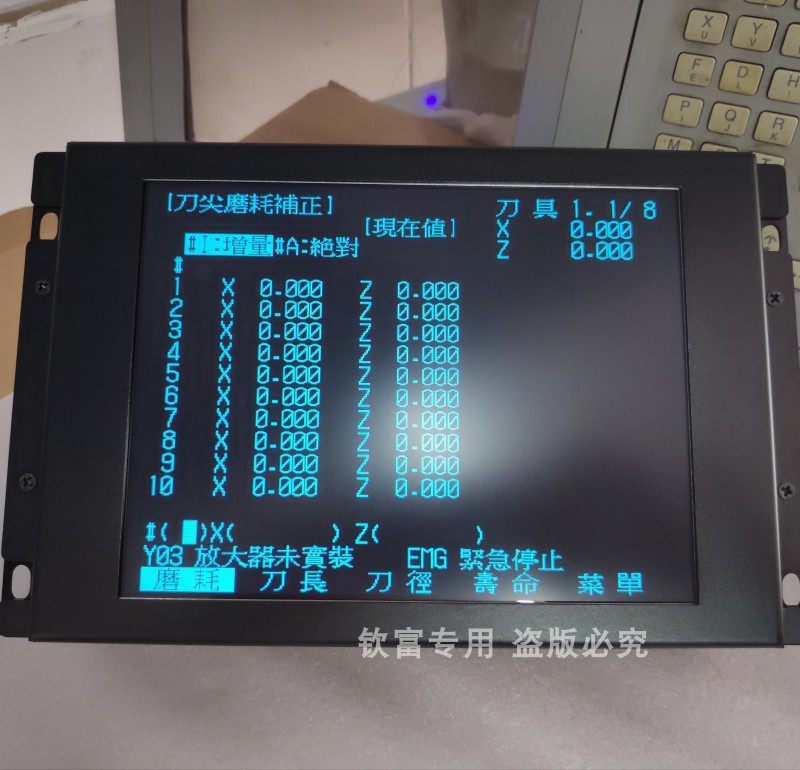

This product is an industrial LCD display, used to update and replace the 9-inch (MDT962B-1A, BM09DF, MDT962B-4A, MDT947, MDT947B-1A, MDT947B-1A, MDT947B-2) BM09DF single amber CRT display used in the Mitsubishi numerical control system M3 M310 M520 M500 M50 E60 M64M64S C64 system (part corresponds to the Mitsubishi manufacturer model is FCUA-CT100)

9 inch related models:MDT962B-1A ,BM09DF ,MDT962B-4A,MDT947, MDT947B-1A,MDT947B-2B

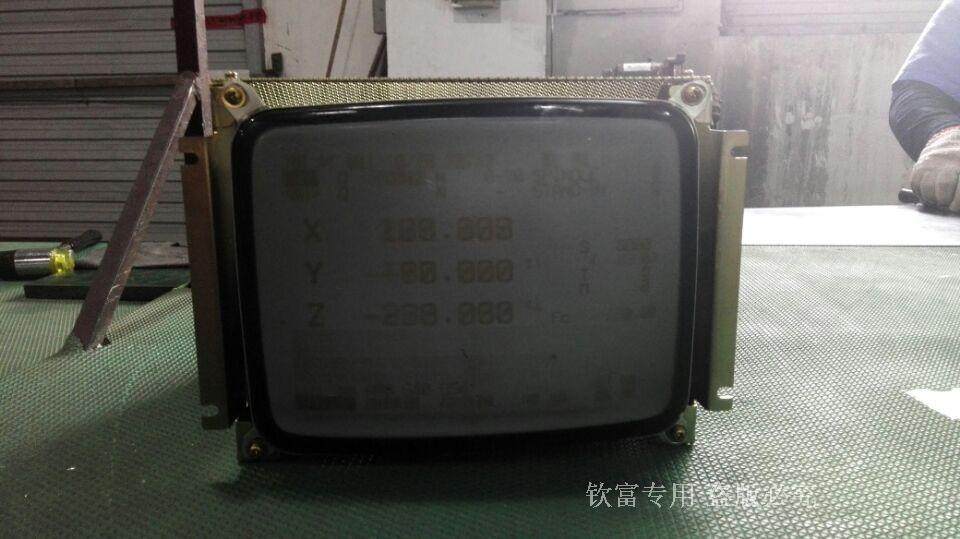

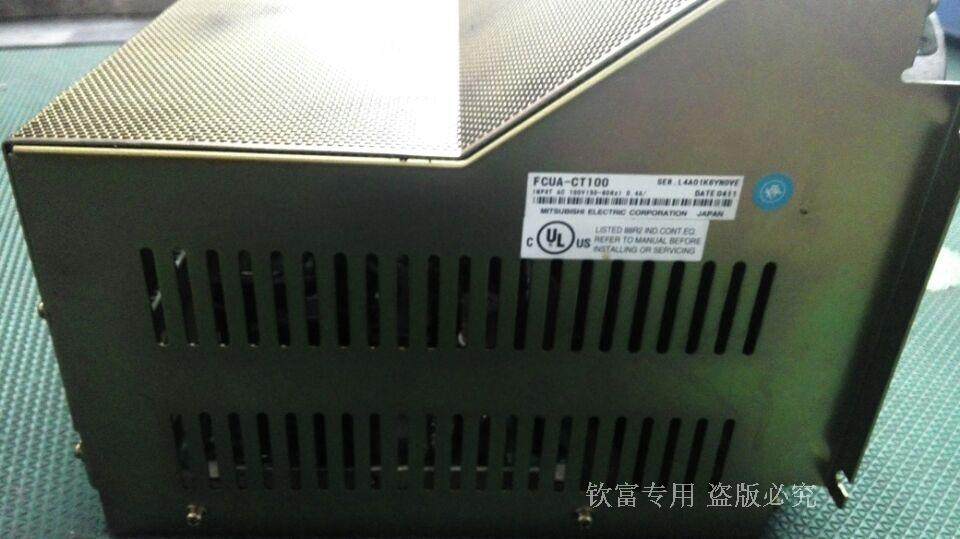

Original Mitsubishi FCUA-CT100 Monitor:

Disassembly and assembly method:

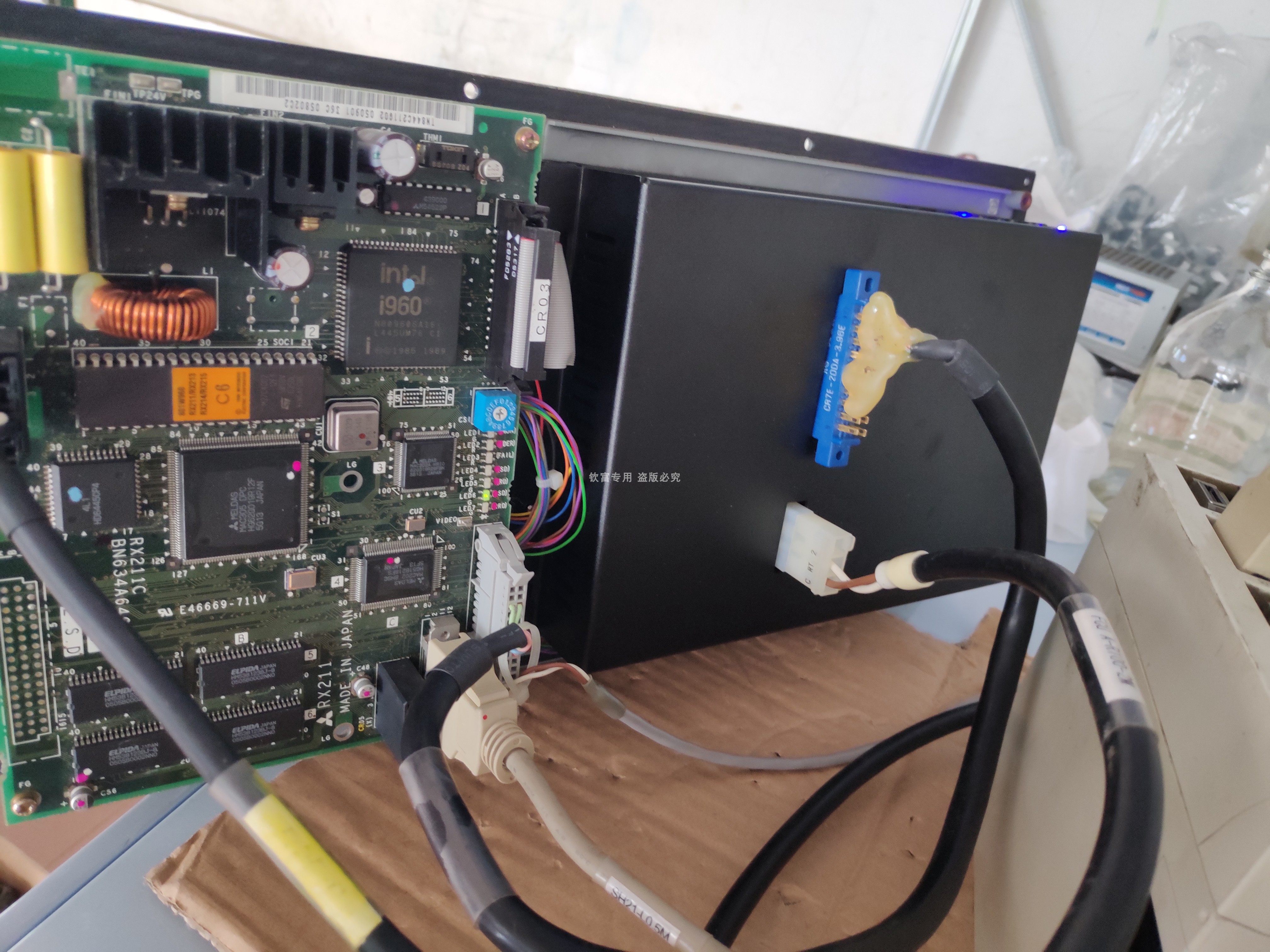

1. Remove the entire display and button panel, and the graphics card circuit board on the left. Be careful not to plug in the wrong interface when installing it back. Then remove the 4 fixing screws of the monitor and remove the CRT monitor.

2. Install the Mitsubishi LCD monitor provided by our company. In the original installation position, the 4 fixing holes can be aligned with the original position, and then the screws are locked and fixed.

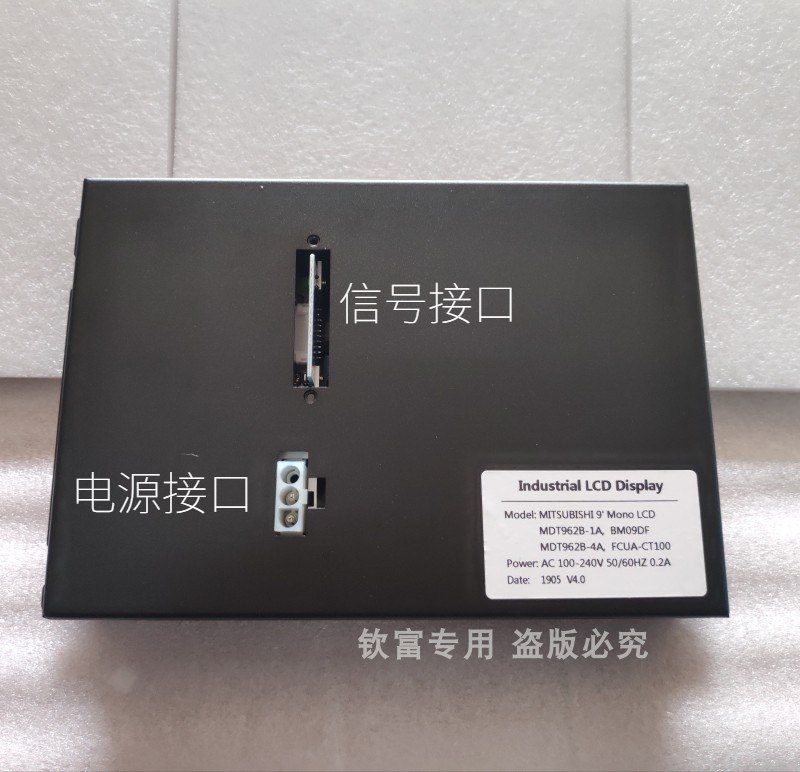

3. The panel is installed back to the appearance of the machine tool, as long as 2 plugs need to be plugged back in (1 is a power plug and 1 is a video signal plug), no changes need to be made to the plug directly, and the other 4-core white brightness control plug does not need to be connected.
