Project			Specifications
			K3P-07AS	K3P-07BS	K3P-07CS
Control Mode			Loop Calculation Storage Program
Programming Language			Statement Table, Ladder Diagram
I/O Refresh Mode			I/O Refresh Mode; Perform Scan Cycle Refresh
Instructions	The Basic Instructions		30
	Application Instructions		220
The Speed of the Order Processing	The Basic Instructions		0.5Us/Step
Program Capacity			7k Step
The Number According to Class Type	P(I/O Relay)		P0000-P015F(512 Points)
	M (Auxiliary Relay)		M0000-M191F(3072 Points)
	K (Maintenance Relay)		K0000-K031F(1024 Points)
	L (Connecting Relay)		L0000-L063F(1024 Points)
	F (Special Relay)		F0000-F063F(1024 Points)
	T (Timer)	100MS	T000-T191(192 Points) Can Be Changed According to Parameter Settings
		10MS	T192-T255(64 Points) Can Be Changed According to Parameter Setting
	C (Counter)		C000-C255(256 Points)
	S( Step-by-Step Control)		S00.00-S99.99(100X100 Steps)
	D (Data Storage)		D0000-D4999 (Step 5000)
5 Types of Timer			Rising Edge, Failling Edge, Accumulative, Monostable, and Complex Trigger Timer
Counter 4 Types			Add, Subtract, Add and Subtract, Ring Counter
Special Function			Online Editing, I/O Force on/off
Operation Mode			Run, Stop, Pause, Debug
Most Large Scale			Substrate (Non-Extendable)
Self-Diagnosis			Watchdog Timer to Detect Storage Errors and Input and Output Errors
Other Features			RS-232C Communication Built-in	RS-422/485 Communication Built-in PID Functions	RS-232C Communication Built-in PID Functions
Internal Current Consumption (Dc5v)			170mA	210mA	170mA

>> Load Module

	Type	The DC Input					The AC Input

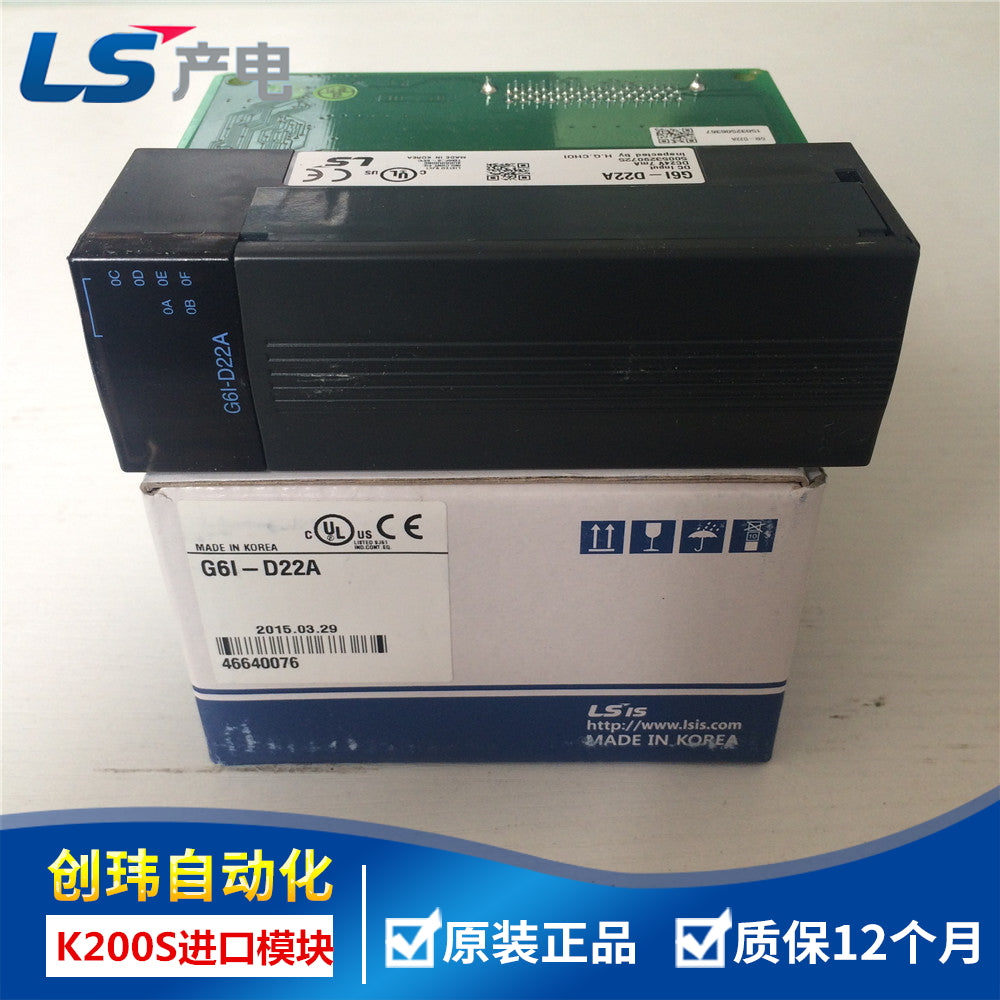

Project		G6I-D21A	G6-D22A	G6I-D22B	G6I-D24A	G6I-D24B	G6I-A11A	G6I-A21A
Entry Point		8 dian	16-Point		32-Point		8 dian
Rated Input Voltage		DC 12/24V		DC 24V	DC12/24V	DC 24V	AC100-120V	AC200-240V
Rated Input Current		3mA/7mA		7mA	3mA/7mA	7mA	7mA	11mA
Voltage and Current	Open	DC9.5V.3.5Ma Or Less		15V/4.3mA	9.5V/3.5mA	15V/4.3mA	AC 80V/5mA
	off	DC below 5V/1.5ma		5V/1.7mA	5V1.5mA	5V/1.7mA	AC 30V/2mA
The Input Electronic Resistance		3.3KΩ					15KΩ	20KΩ
Response Time	Off → Open	5mS following					15mS following
	Open → off	5mS following					25mS following
Public Way		8 dian/1COM			32-Point/1COM		8 dian/1COM
Type		Common Land, Common Source (Infinite Type)		Common Source (Common)	Common Land, Common Source (Infinite Type)	Common Source (Common)
Isolation Mode		Photoelectric Isolation
Running Index		LED Flickers When Input on
Internal Power Consumption (Dc5v)		40mA	70mA		75mA		35mA

>> Output Module

	Type	Relay Output		Triac Output	Transistor Output
Project		G6Q-RY1A	G6Q-RY2A	G6Q-SS1A	G6Q-TR2A	G6Q-TR2B	G6Q-TR4A	G6Q-TR4B
Output Points		8 dian	16-Point	8 dian	16-Point		8 dian
Rated Input Voltage		DC 12/24V,AC100-220V		AC100-240V	DC12/24V
Rated Input Current		2a/1 Point	2a/1 Point, 5A/1com,,,	1A/1 Point 4A/1COM	0.5A/1 Point, 4A/1com		0.1A/1 Point, 2a/1com
Leakage Current When off		0.1mS following		2.5mS following	0.15mS following
Voltage Drop on		-		AC1.5V following	DC1.5 following		DC2.5V following	DC3.0V following
Response Time	Off → Open	10mS following		1mS following	2mS following
	Open → off	12mS following		0.5cycle + 1mS following	2mS following
Public Way		1 Point/1COM	8 dian/1COM	8 dian/1COM	16-Point/1COM	16-Point/1COM	32-Point/1COM	32-Point/1COM
Type		-			Common Source (Common)
Isolation Mode		Relay Isolation		Photoelectric Isolation
The Surge Absorption				Variable Electronic Resistance Cr Absorber	Diode
External Power Supply		-			24V
Running Index		LED Flickering When Output on
Internal Power Consumption (Dc5v)		210mA	400mA	190mA	180mA	170mA	140mA	145mA
