MT4620TE : 12.1 inch Kinco HMI touch screen panel MT4620TE Ethernet with programming Cable&Software, FAST SHIPPING

$1,014.95 USD

Zaměřte se na spolehlivost a efektivitu

Vaše průmyslová výroba si zaslouží to nejlepší – nenechávejte se spokojeni s méně!

Vysoce stimulující

Pospěšte! Upozornění na omezené zásoby důležitých prvků průmyslové řízení!

aeProduct.getSubject()

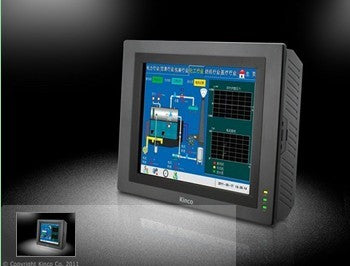

12.1 inch Kinco HMI touch screen panel MT4620TE Ethernet with programming Cable&Software

MT4620TE

The HMI MT4620TE is available, if need other choices, contact us directly.

Configuration software: Kinco HMIware v2.2 (free English versions)

HMI language: English, Korean Chinese Russian

HMI certification: CE

Only one programming cable is available, if you need communication cable, please inform us of your PLC model, We will provide the best service and quote the best price to you.

Kinco HMI can communicate with most of the equipment ,in especial

ABB, AB, ACS~Tech80 motion Controller, ADAM, AysjNet, BACnet MS/TP, Baldor NextMove ES, Barcode,Baumuller, Bosch Rexroth KVFC+, Bosch Rexroth Ethernet, CANOpen Node Slave, Cimon, Danfoss, Delta, ENDA, Emerson NetWork Power, Epower, FATEk, Fuji, GE, Haiwell, HanG, Hitachi Inverter, Hollysys, Huada HD~JZ06, IDEC, Inovance, Invt, KDN, Kinco PLC, Kinco EB~MOD2P~01, Kinco Servo Series, Kinco Master and Kinco Slave, Keyence, Koyo, KTC Srdlink, KYL Slave, LS(LG), LUST, Memory map, Mikom, Millenium3, Mitsubishi, Mks, Modbus, MODROL, OMRON, OPTO 22, Panasonic, Parker Automation, PMAC, Power~one AuRORA Wind Inverter, Profibus DP Slave, RF~IC, RKC Instrument INC, Saia~Burgess, Sailsors D9, Schneider, SHIMADEN Fp33, Siemens, Sinocon Scln, TAIAN, TMCM_303, XINJE, TOLEDO DLoadCell, TRIo, Vigoe, XIlin EH600, Yamatake, Yaskawa, Yokogawa, YUDian AI, ZIguang Ethernet.

General Feature:

Display:12.1″TFT
Color:65536 Colors
Memory:1Gbit HAND FLASH + 64M DDR2-667

Model	MT4620TE
Performance specification
Display	12.1" TFT
Resolution	800*600
Color	65536
Backlight	LED
Brightness	450cd/m²
Backlight Life	50000 Hours
Touch Panel	4-Wire Precision Resistance Network
Processor	800MHz 32Bit-RISC
Memory	1Gbit NAND Flash + 64M DDR2-667
U Disk	1USB HOST
SD Card	1 SD Card
Recipe Memory & RTC	256KB + RTC
Printer Port	USB/Serial Port
Ethernet	Support
Program Download	USB SLAVE/Serial Port/Ethernet Port
COM Port	COM0:RS232/RS485-2/RS485-4, COM1:RS232/RS485-2/RS485-4, COM2:RS232
Electrical Specification
Rated Power	10W
Rated Voltage	DC24V
Input Range	21~28VDC
Power Down Allowed	<5ms
Insulation Resistance	Greater than 50Mohm@ 500V DC
Dielectric Strength Test	500 VAC 1 Minute
Structure Specification
Shell Color	Cold Gray
Shell Material	ABS
Dimensions(mm)	350×260×54mm
Cutout Size(mm)	340×250 mm
Weight	4.4 Kg
Environment Specification
Operating Temperature	-10~55centigrade degree
Operating Humidity	10~90% Non-Condensing
Storage Temperature	-20~60centigrade degree
Storage Humidity	10~90% Non-Condensing
Shockproof Test	10~25Hz (X, Y, Z Direction, 2G, 30 Minutes)
Cooling Method	Natural Air Cooling
Certification
Degree of Protection	IP65 (Front Panel)
CE Certification	Comply with EN61000-6-2:2005 and EN61000-6-4:2007Standards
FCC Compatibility	Complies with FCC Class A

Shipping Policy:

Items will be shipped within 1-5 working days once the payment is received.
DHL is our preferred shipping method, FedEx, EMS, UPS are also available. We will choose the best and most suitable shipping for customers. It taks 3-7 business days to most countries.
Customers will be notified the tracking number to track the progress of delivery.
Customers are charged for any and all customs, duties taxes and other fees.

Warranty Policy:

We guarantee all products in new condition have 1 year warranty, and products in used or second-hand condition have 90 days warranty.
All products are 100% Tested and packing in good condition before dispatch.

Return Policy:

We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
Any quality problem in normal use during the warranty period, we will repair for free. The buyer should pay the return cost and our company will pay the re-shipping cost.

Feedback:

Your feedback is very important to us, please leave positive feedback and 5 star to us if you are satisfied with our product and service
Please kindly contact us before leaving any neutral or negative feedback, we will work with you to solve the problems. Thank you.

Frindly Tips: Laypeople please do not buy directly, if products are damage under the following conditions, return or replace isn't available.Hope you understand, if anything unclear,please keep in touch with us before payment.
