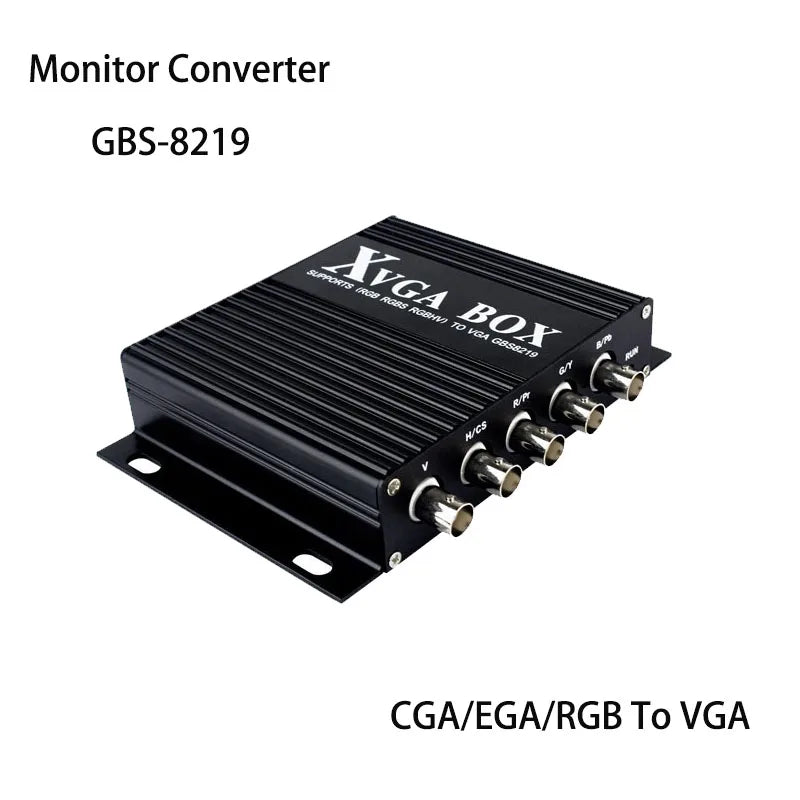

Industrial Monitor Converter GBS-8219 Support CGA/EGA/RGB To VGA For CNC Display

Industrial Monitor Converter GBS-8219 Support CGA/EGA/RGB To VGA For CNC Display

$328.22
$485.77
Features: - Feature specifications Input Signals MDA、CGA、EGA、RGB、RGB Sog、RGBS、RGBHV、YPbPr Interface 9pin、3pin、6pin、14pin、20pin、25pin Horizontal Frequency Rate(H) 12kHz to 40kHz automatically recognized Output Supports 15pin VGA，Resolution:800*600/60HZ or custom-resolution Interface D-Sub 15 PIN standard VGA port Power DC 12V 1.0A Note: 1.YPbPr = YUV 2.Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized. 3.Support RGB and YPbPr 4.Support Interlaced...
-
+
$328.22

NewTouchBuff Official Store

198 In Stock

Add to wishlist

Features:

- Feature specifications



Input

Signals

MDA、CGA、EGA、RGB、RGB Sog、RGBS、RGBHV、YPbPr

Interface

9pin、3pin、6pin、14pin、20pin、25pin

Horizontal Frequency Rate(H)

12kHz to 40kHz

automatically recognized

Output

Supports

15pin VGA，Resolution:800*600/60HZ

or custom-resolution

Interface

D-Sub 15 PIN standard VGA port

Power

DC 12V 1.0A



Note:

1.YPbPr = YUV

2.Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.

3.Support RGB and YPbPr

4.Support Interlaced Scanning and Line by Line Scanning.

5.Support Vertical Resolution from line200 to line 600 automatically recognized.

6.Support variable Horizontal Resolution automatically recognized。

7.Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized

8.Output resolution: 800*600/60Hz standard VGA or custom-resolution.




CUSTOMIZED LCD DISPLAY:


We provide customized LCD,if user need,please provide


Original CRT MONITOR INTERFACE definition and DETAILED signal parameters, monitor size, monitor model, system parameters and other information.


If you have any questions,please feel free to contact us
