Buke MT5323T MT5323T-CAN MT5323T-DP MT5323T-MPI 5.7" HMI Touch Screen Human Machine Interface
- 640 * 480 high definition resolution, the picture is clearer
- Adopt high-performance 32-bit 520MHz RISC CPU, fast processing power to ensure higher work efficiency
- Using high brightness and wide temperature liquid crystal, working temperature -20~ 70 ℃
-
MT5323T Wide temperature type5.7〞64KcolorTFTShow,640*480High resolution,2aUSB HOST/1SDCard interface, standard network port, no audio output MT5323T-CAN Wide temperature type5.7〞64KcolorTFTShow,640*480High resolution,2aUSB HOST/1SDCard interface, standard network port, no audio output,
Expansion bus interface:CANMT5323T-DP Wide temperature type5.7〞64KcolorTFTShow,640*480High resolution,2aUSB HOST/1SDCard interface, standard network port, no audio output,
Expansion bus interface:Profibus-DPMT5323T-MPI Wide temperature type5.7〞64KcolorTFTShow,640*480High resolution,2aUSB HOST/1SDCard interface, standard network port, no audio output,
Expansion bus interface:MPI -
performance specification
Display size 5.7" TFT resolution 640 * 480 pixels Display color 65536 color brightness 700cd/m2 Backlight LED Touch screen 4-Wire precision resistor network (surface hardness 4H) Liquid crystal lifetime 50,000 hours CPU 32-bit 520MHz RISC Memory 16MB flash memory + 32MB memory Recipe Storage & RTC 512KB + real-time clock expandable memory 2 USB Host (≤ 16G) + 1 SD Card (supports SD card within 2GB) print port USB/serial port Ethernet 1 10M/100M adaptive Ethernet port Audio output without video input without program download 1 USB SLAVE port Communication port COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 extension interface Standard without expansion Expansion connector wiring method without -
Structural specification

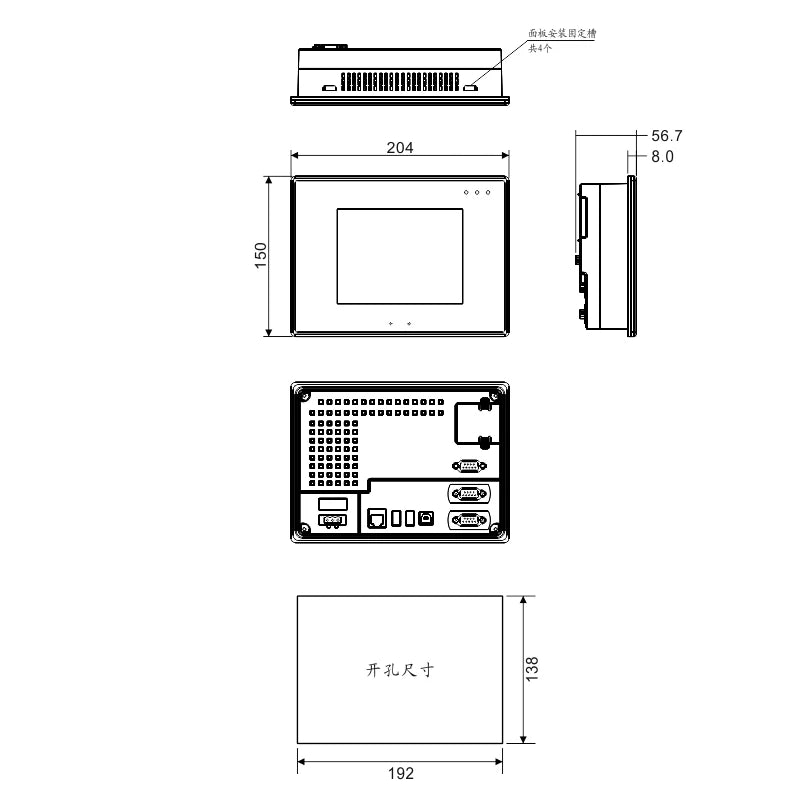

Shell color Light gray shell material Engineering Plastics external dimensions 204×150×56.7mm Mounting opening size 192×138mm weight 0.96 Kg
Electrical specifications
| rated power | 10 |
| rated voltage | DC24V |
| input range | DC12V～DC28V |
| Allow power failure | <3ms |
| insulation resistance | Over 50MΩ @500V DC |
| Pressure resistance | 500V AC for 1 minute |
Environmental specifications
| operating temperature | -20～70℃ |
| working humidity | 10~ 90% RH (non-condensing) |
| Storage temperature | -30～80℃ |
| Storage humidity | 10~ 90% RH (non-condensing) |
| Seismic resistance | 10~ 25 Hz (2G/30 minutes in X, Y, Z directions) |
| cooling method | natural air cooling |
Product certification
| Panel protection level | IP65 compliant (4208-93) |
| CE certification | Compliant with CE certification (EN61000-6-2:2005/EN61000-6-4:2007) |
| FCC compatibility | FCC Class A Compliant |
